Page 6 - Willem Barentsz

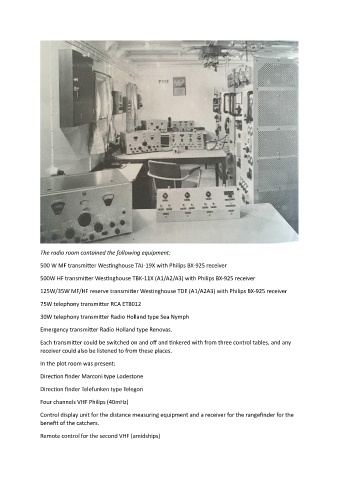

The radio room contained the following equipment:

500 W MF transmitter Westinghouse TAJ-19X with Philips BX-925 receiver
500W HF transmitter Westinghouse TBK-11X (A1/A2/A3) with Philips BX-925 receiver

125W/35W MF/HF reserve transmitter Westinghouse TDE (A1/A2A3) with Philips BX-925 receiver

75W telephony transmitter RCA ET8012

30W telephony transmitter Radio Holland type Sea Nymph

Emergency transmitter Radio Holland type Renovas.
Each transmitter could be switched on and off and tinkered with from three control tables, and any
receiver could also be listened to from these places.

In the plot room was present:

Direction finder Marconi type Lodestone

Direction finder Telefunken type Telegon

Four channels VHF Philips (40mHz)
Control display unit for the distance measuring equipment and a receiver for the rangefinder for the
benefit of the catchers.

Remote control for the second VHF (amidships)
